The ET Farm Utility Model
MSRP – $4730-$5330
ALL ET HITCHES CAN BE MODIFIED TO MEET YOUR BUILD NEEDS

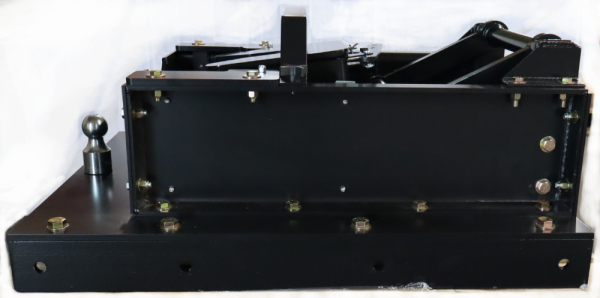

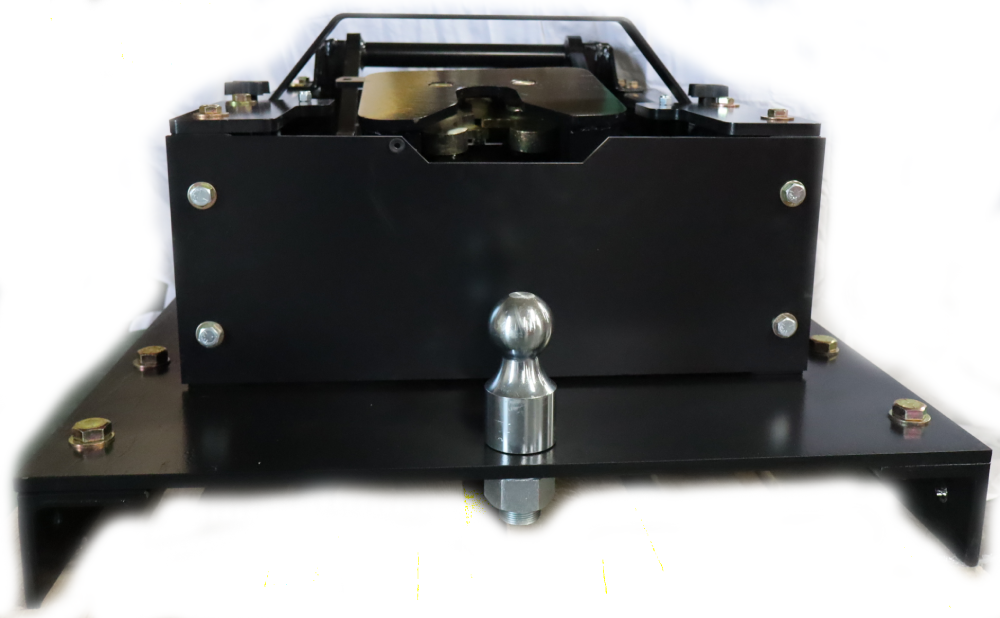

32” x 44 1/4” with 1/2″ thick mounting plate, Available with (4) 2500 lb air bags or (1) 13,500 lb air bag. Depending on the selection of air ride system the hitch will cover a range of trailers from 20K to 39K GTWR and 4000 to 8100 VTW (Optimal Range). The ET Senior Utility and ET Super Senior Utility has an extended mounting plate with a 30K gooseneck hitch ball mounted on the plate. The ET Utility offers a wide range of motion on the air bag(s), total of five inches, 3” down and 2” up.
Typical head height, 15” from mounting plate to top of 5th wheel coupler head.
Quick Facts
- Typical head height, 15” from mounting plate to top of 5th wheel coupler head.

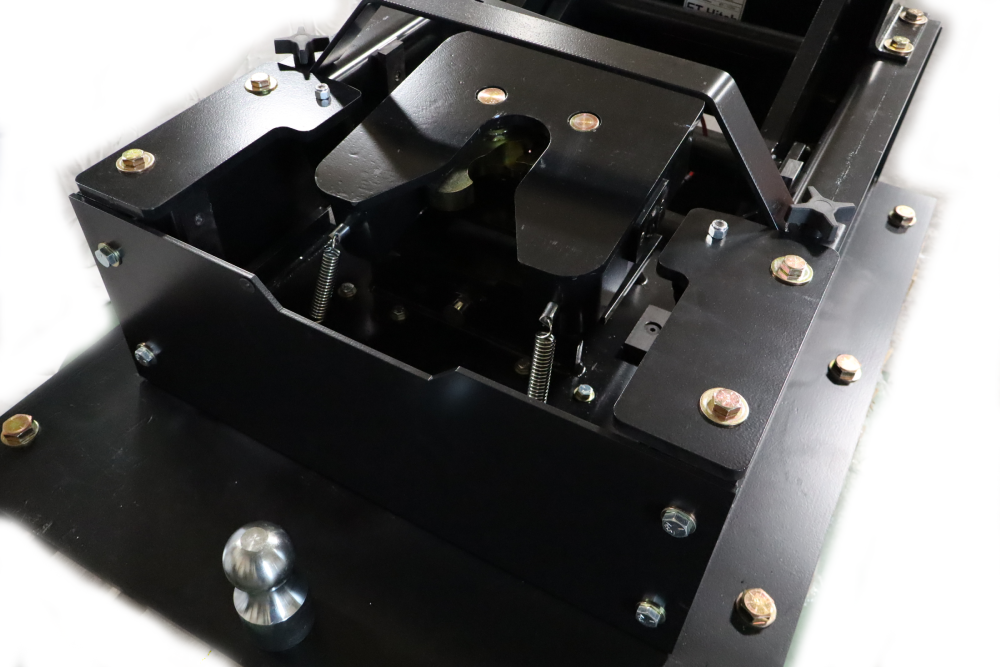

- Fully articulating head
- Hardened steel wrap around jaws
- Space age greaseless bearings
- Parallelogram design to transfer horizontal chucking to air spring system
- Hitch ships 100% complete
- American Made
- Durable Power Coat Finish
The geometry of the ET converts the horizontal forces into vertical forces and absorbs those forces to nearly eliminate chucking. This translates to less stress on the truck, trailer, livestock and passengers.
The ET hitch was designed and is built with quality components for long lasting service.
Precision ground, polished, case hardened shafts approximately twice the strength of grade 8 bolts.
Everything that moves, rotates or rubs is isolated and protected. On the shafts rotation points there are space age, greaseless composite bearings. These bearings are capable of withstanding pressure of 26,000 pounds per square inch. They are NOT affected by grit, grime or water and will NOT fail in extreme temperatures.

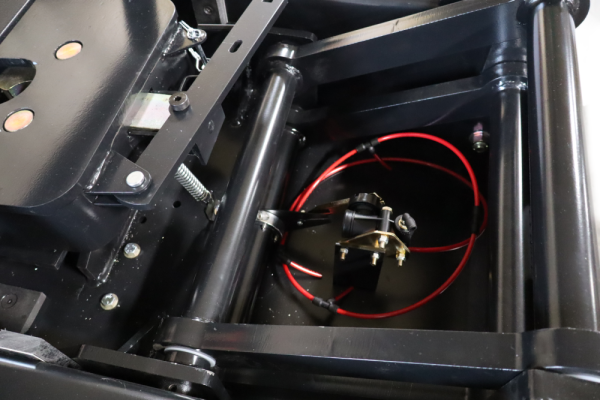

Automatic Head Leveling Valve. This innovation insures the coupler head remains at the proper operating height when under a load. Although the optimum range of operation is at 40% to 60% (40 to 60 psi) the head leveling valve will keep the coupler head at the right height with a lighter or heavier tongue weight.
Designed with anti-chucking mechanism. Chucking is that nagging pulling back and forth between truck and trailer. The geometric design, a parallelogram “dog bones” in the ET hitch vertically suspends 100% of the pin weight on the air bags and when the chucking force comes forward it redirects the force downwards into the same airbag(s).
Made in America
