205ST30K-T Tall Flip-Over Hitch for Semi-Tractor and Cab/Chassis
Tall Flip-Over Hitch for Semi-Tractors and Cab/Chassis

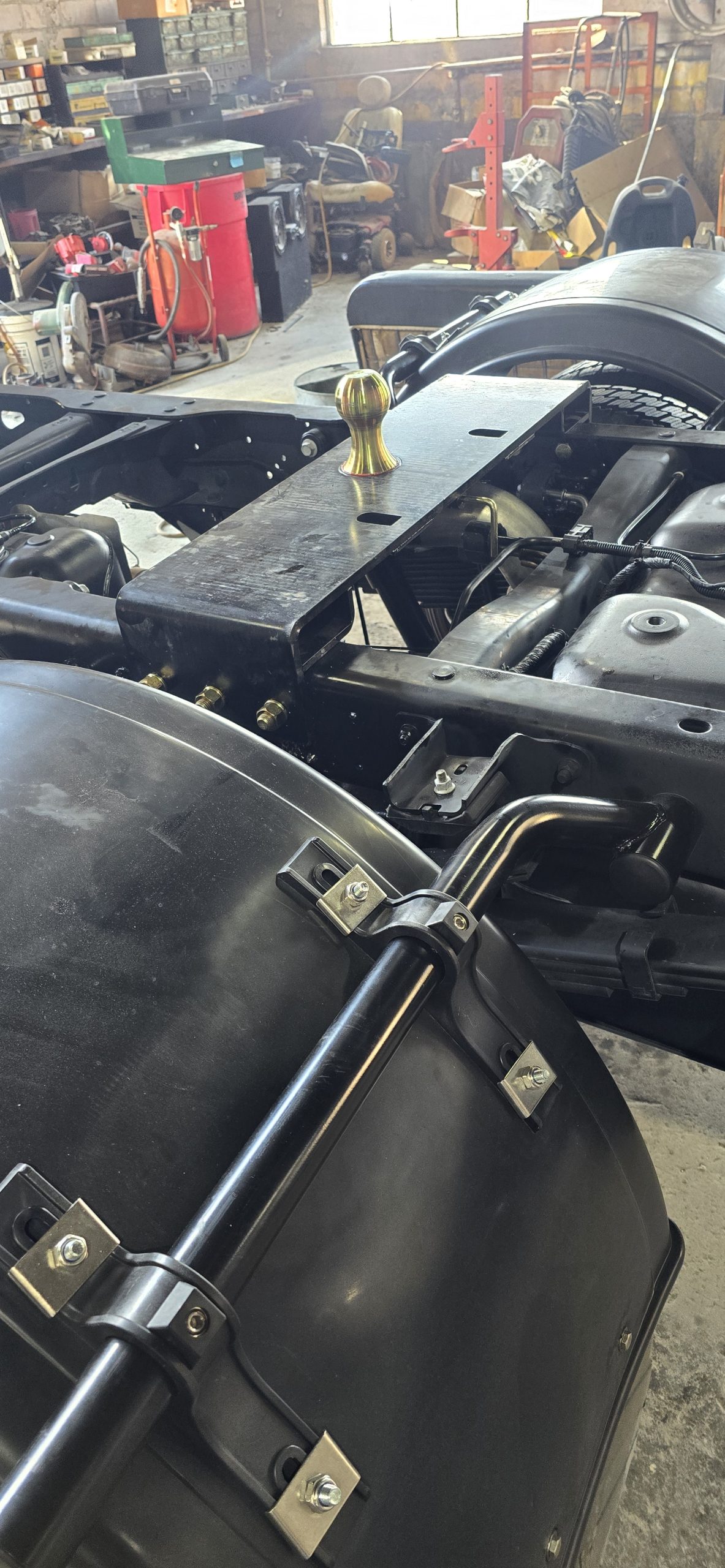

Installs behind fifth-wheel on standard 34″ frames. The tall model sets 2″ taller to set the bottom rail of the hitch level with the top of your frame so it will clear exhaust and other components running along the frame.
NOTE: PopUp Towing Products Semi-hitches will NOT fit truck frames with an outside width greater than 34″. 34″ frame width is an industry standard for most Semi-Tractors as well as Cab & Chassis pick-up trucks. As always measure your frame width precisely before ordering your semi-hitch.
Because the Flip-Over ball rotates in its socket, hitch ball and coupler life are greatly extended. They don’t “grind” against each other when you tow. The other advantage of a rotating ball is that it stays “free” in its socket so you can easily turn it over when you want a level floor in your truck.
Requires 10″ front to back on top of the frame and 4″ down each side and 2″ above the frame. Mounts with three 3/4″ bolts on each side (Included).
Fabricated from 1/2” high-grade steel. Complete with 2 5/16” ball rated at 30,000 lb GTWR and mounting hardware. Gross tongue weight of 6,500 lbs. VTW. This unit is also available in a 45,000 lb GTWR and 9,000 VTW unit and comes with a Stainless Steel 2 5/16″ ball (205ST45K-T). Also available separately is a 3” ball rated at 45,000 lb and 9,000 lb VTW (FL1005-3).
The ball is locked in the one-piece machined steel socket with a spring loaded stainless steel pin. Simply rotate the handle to retract the pin, pull the ball out and store it inverted and out of the way in the socket giving full access to the fifth-wheel.
Tall Flip-Over Hitch for Semi-Tractors and Cab/Chassis
Installs behind fifth-wheel on standard 34″ frames. The tall model sets 2″ taller to set the bottom rail of the hitch level with the top of your frame so it will clear exhaust and other components running along the frame.
NOTE: PopUp Towing Products Semi-hitches will NOT fit truck frames with an outside width greater than 34″. 34″ frame width is an industry standard for most Semi-Tractors as well as Cab & Chassis pick-up trucks. As always measure your frame width precisely before ordering your semi-hitch.
Because the Flip-Over ball rotates in its socket, hitch ball and coupler life are greatly extended. They don’t “grind” against each other when you tow. The other advantage of a rotating ball is that it stays “free” in its socket so you can easily turn it over when you want a level floor in your truck.
Requires 10″ front to back on top of the frame and 4″ down each side and 2″ above the frame. Mounts with three 3/4″ bolts on each side (Included).
Fabricated from 1/2” high-grade steel. Complete with 2 5/16” ball rated at 30,000 lb GTWR and mounting hardware. Gross tongue weight of 6,500 lbs. VTW. This unit is also available in a 45,000 lb GTWR and 9,000 VTW unit and comes with a Stainless Steel 2 5/16″ ball (205ST45K-T). Also available separately is a 3” ball rated at 45,000 lb and 9,000 lb VTW (FL1005-3).
The ball is locked in the one-piece machined steel socket with a spring loaded stainless steel pin. Simply rotate the handle to retract the pin, pull the ball out and store it inverted and out of the way in the socket giving full access to the fifth-wheel.
Made in America
